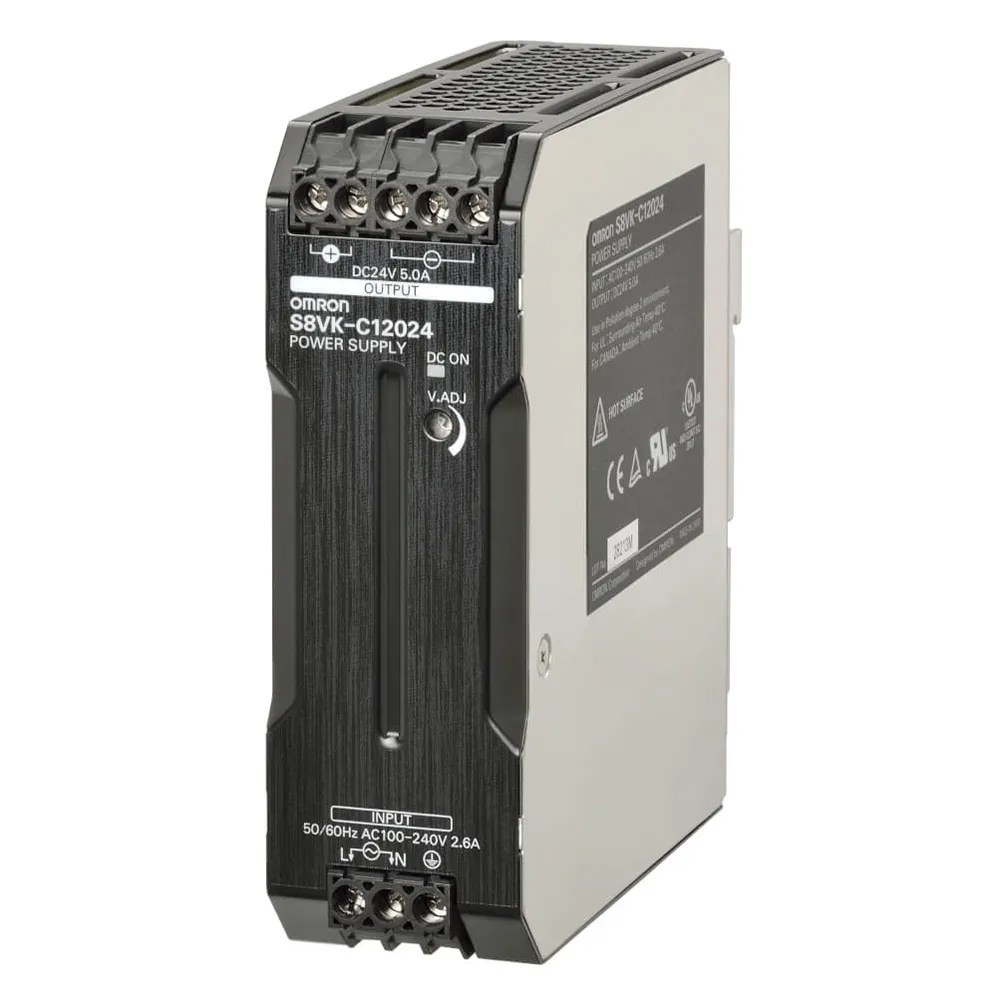

Omron S8VK-C SMPS Indicator

Omron S8VK-C Series SMPS Indicator

The S8VK-C series is a compact, reliable, and cost-effective power supply from Omron, designed specifically for control panels and factory automation. Known as the "Value Line" of Omron’s power supply portfolio, it balances performance and affordability without compromising on quality or safety.

Categories:

Panel Components

Key Features

  • Compact Size, Panel-Saving Design
    • Slim profile helps maximize space in control cabinets
    • Ideal for installations with limited space
  • Universal Input Range:
    • Accepts 85–264 VAC or 90–350 VDC
  • Wide Output Power Range:
    • From 60W to 480W output capacity
    • Output voltages: 5V, 12V, 24V, 48V DC
  • Built for Harsh Conditions:
    • Operating temperature: –25°C to +60°C (–40°C startup)
    • Vibration resistance: 5G, 10–150Hz
  • Reliable Protection Features:
    • Overload, overvoltage, and short-circuit protection
    • Built-in surge suppression
  • Easy DIN Rail Mounting:
    • Snap-fit design for quick and tool-less installation
  • LED Status Indicator:
    • Quick visual check of operational status
  • Global Certifications:
    • CE, UL, cULus, and EN/IEC standards compliant
Power ratings 60 W 120 W 240 W 480 W
Output voltage (VDC) 24 V 24 V 24 V 24 V
Efficiency (Typical) 230 VAC input 0.88 0.88 0.87 0.91
Input Voltage *1 100 to 240 VAC, 90 to 350 VDC (allowable range: 85 to 264 VAC) *6
Frequency *1 50/60 Hz (47 to 450 Hz) 50/60 Hz (47 to 63 Hz)
Current (Typical) 115 VAC input 1.0 A 2.2 A 2.5 A 4.8 A
230 VAC input 0.7 A 1.4 A 1.3 A 2.4 A
Power factor (Typical) *7 230 VAC input 0.44 0.45 0.92 0.97
Harmonic current emissions --- Conforms to EN61000-3-2
Leakage current (Typical) 115 VAC input 0.19 mA 0.19 mA 0.24 mA 0.26 mA
230 VAC input 0.34 mA 0.36 mA 0.54 mA 0.65 mA
Inrush current (Typical) *2 115 VAC input 16 A
230 VAC input 32 A
Output Voltage adjustment range *3 -10% to 15% (with V.ADJ) (guaranteed)
Ripple at 20 MHz (Typical) *4 230 VAC input 70 mV 120 mV 150 mV 130 mV
Input variation influence 0.5% max. (at 85 to 264 VAC input, 100% load)
Load variation Influence (Rated Input voltage) 1.5% max., at 0% to 100% load
Temperature variation influence 0.05%/°C max.
Start up time (Typical) *2 115 VAC input 530 ms 800 ms 790 ms 770 ms
230 VAC input 410 ms 760 ms 750 ms 670 ms
Hold time (Typical) *2 115 VAC input 24 ms 27 ms 34 ms 21 ms
230 VAC input 117 ms 128 ms 36 ms 22 ms
Additional functions Overload protection *2 105% to 160% of rated load current
Overvoltage protection *2 Yes *5
Parallel operation No
Series operation Possible for up to two Power Supplies (with external diode)
Others Ambient operating temperature -25 to 60°C (Refer to Engineering Data)
Storage temperature -25 to 65°C
Ambient operating humidity 20% to 90% (Storage humidity: 10% to 95%)
Dielectric strength (detection current: 20 mA) 3.0 kVAC for 1 min. (between all inputs and outputs) 2.0 kVAC for 1 min. (between all inputs and PE terminal) 1.0 kVAC for 1 min. (between all outputs and PE terminal)
Insulation resistance 100 MΩ min. (between all outputs and all inputs/PE terminals) at 500 VDC
Vibration resistance 10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions
10 to 150 Hz, 0.35-mm single amplitude (5 G max for 60W, 120W, 240 W, 3 G max for 480 W) for 80 min. each in X, Y, and Z directions
Shock resistance 150 m/s2, 3 times each in ±X, ±Y, and ±Z directions
Output indicatior Yes (color: green), lighting from 80% to 90% or more of rated voltage
EMI Conducted Emission Conforms to EN61204-3 EN55011 Class A and based on FCC Class A
Radiated Emission Conforms to EN61204-3 EN55011 Class A
EMS Conforms to EN61204-3 high severity levels
Safety standards UL Listed: UL508 (Listing) UL UR: UL No. 62368-1 (Recognition) cUL: CSA C22.2 No.107.1 cUR: CSA C22.2 No.62368-1 EN: EN 62477-1, EN 62368-1 BIS: IS 13252 (Part1)
Fulfilled Standards SELV (EN 62368-1/EN 62477-1/UL No. 62368-1)
Degree of protection IP20 by EN/IEC60529
SEMI F47-0706 (200 to 240 VAC)
Weight 260 g 580 g 940 g 1,550 g
Power ratings Input voltage Output Voltage (VDC) Output current *1 Model number
60 W Single phase
100 to 240 VAC
90 to 350 VDC 		24 V 2.5 A S8VK-C06024
120 W 24 V 5 A S8VK-C12024
240 W 24 V 10 A S8VK-C24024
480 W 24 V 20 A S8VK-C48024
Catalog Name
Catalog Number[size]
Last Update
S8VK-C Data Sheet T058-E1-05
[4677KB] 		Oct 23, 2023
S8VK-S/S8FS-G Power Supply Guide Catalog T209-E1-09
[2280KB] 		Oct 23, 2023

Applications

  • Factory Automation & Industrial Panels
  • PLCs, HMIs, Sensors & Actuators
  • Compact machines and control boxes
  • Process instrumentation & building automation

Why Choose

  • Value Line: Designed for cost-sensitive applications
  • Compact and robust: Ideal for modern control panel designs
  • Omron Reliability: Proven components with long service life
  • Simple installation with DIN-rail mounting and LED diagnostics
